Product Introduction

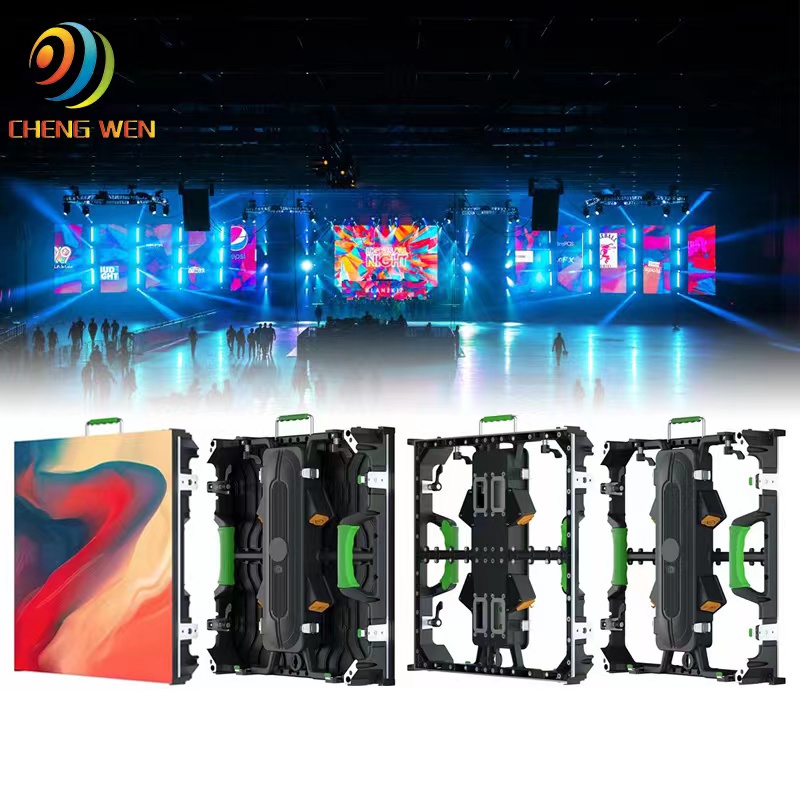

The P2..976 indoor rental LED Screen is a high-resolution screen with a pixel pitch of 2.6mm. This means that the distance between each LED pixel is 2..976mm, resulting in a high level of detail and clarity in the displayed content. Professional HD Indoor Rental LED Screen with Light weight cabinet in 500*500mm, easy moveable and installastion.
The P2.976 indoor rental LED screen is a high-resolution Led Display designed for indoor use. It has a pixel pitch of 2.976mm, which means that the distance between each LED is 2.976mm Led Video Wall. This results in a very high pixel density, which makes the images and videos on the screen appear very sharp and clear.
Application

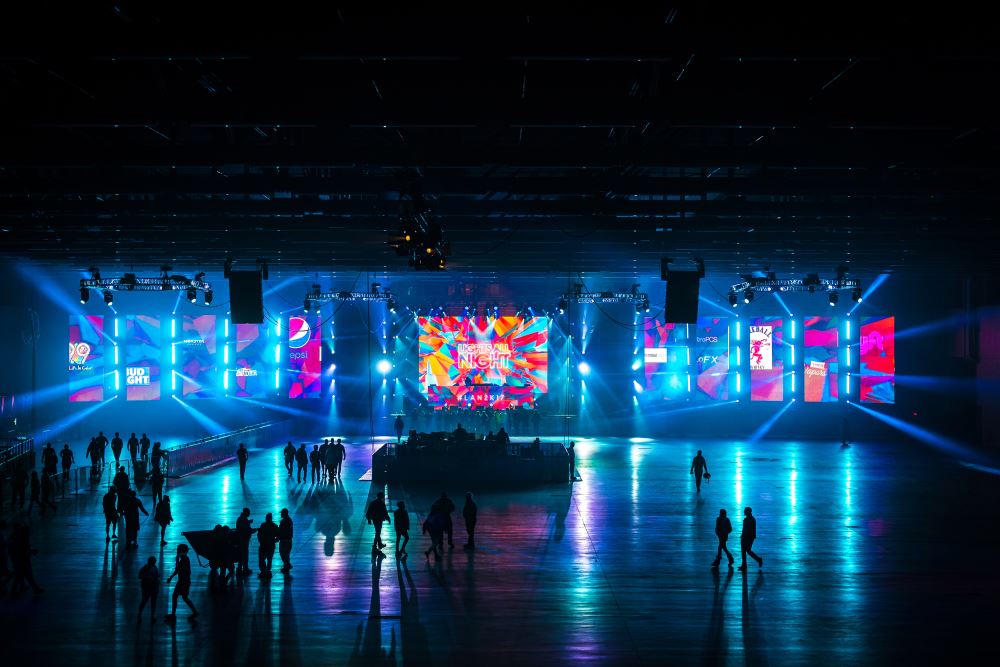

Indoor rental LED screens are a popular choice for events, trade shows, conferences, and other indoor gatherings. These screens are designed to be lightweight, modular, and easy to install and dismantle, making them ideal for temporary installations.
Packing Solution
Flight case packing for LED screens is a popular method of transporting and protecting these delicate pieces of equipment. LED screens are used in a variety of settings, from concerts and festivals to corporate events and trade shows. They are large, heavy, and expensive, which makes them vulnerable to damage during transportation. Flight case packing is a reliable way to ensure that your LED screen arrives at its destination in perfect condition.
Date Sheet
MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH2.976)
| （Technical parameters） | UNIT | （ parameters values ） |
| （Pixel pitch） | MM | 2.976 |
| （Panel size） | MM | L250*H250*T14 |
| （Physical density） | /M2 | 112910 |
| （Pixel configuration） | R/G/B | 1,1,1 |
| （Driving method） | | 1/28 Constant current 1/28scan |
| （LED Encapsulation） | SMD | 2121 |
| （Display resolution） | DOTS | 84X84=7056 |
| （Module weight） | KG | 0.56 |
| （Module port） | | HUB-75E |
| （Module working voltage） | VDC | 5 |
| （Module consumption ） | W | 20 |
| Panel Parameter |
| （Viewing angle） | Deg. | 140 |
| （Option distance） | M | 3-30 |
| （Driving device） | | IC:2038S/2153 |
| （Every square metre module） | PCS | 16 |
| （Maximum power） | W/ M2 | 320 |
| （Frame Frequency） | HZ/S | ≥60 |
| （Refresh frequency） | HZ/S | ≥1920/3840 |
| （Equilibrium brightness） | CD/ M2 | 900-1200mcd |
| （Working environment temperature） | 0C | -20~60 |
（Working environment humidity） | RH | 10%～70% |
| （Display working voltage） | VAC | AC46～54HZ，220V±15%/110V±15% |
| （Colour temperature） | | 8500K-11500K |
| （Gray scale/color） | | ≥16.7M color |
| （Input signal） | | RF\ S-Video\ RGB etc |
| （Control system） | | NovaStar Linsn Color Light |
| （Mean free error time） | HOURS | ＞5000 |
| （Life） | HOURS | 100000 |
| （Lamp failure frequency） | | ＜0.0001 |
| （Antijam） | | IEC801 |
| （Safety） | | GB4793 |
| （Resist the electricity） | | 1500V last 1min No breakdown |
| （IP rating） | | The back IP40，The front IP50 |
| （Steel box size） | mm | L500Xh500/500X1000 |
