Product Introduction

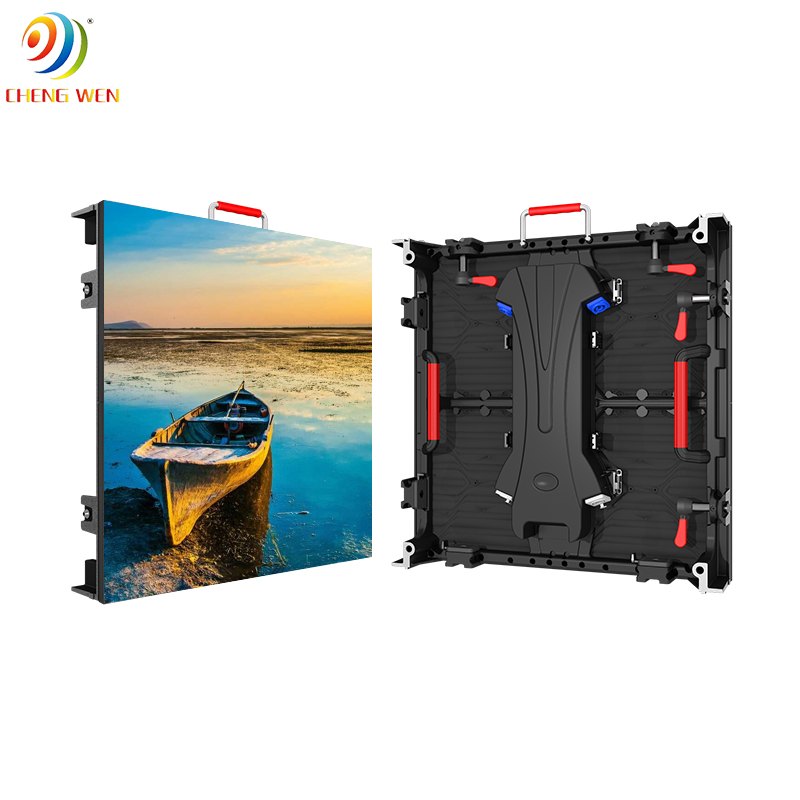

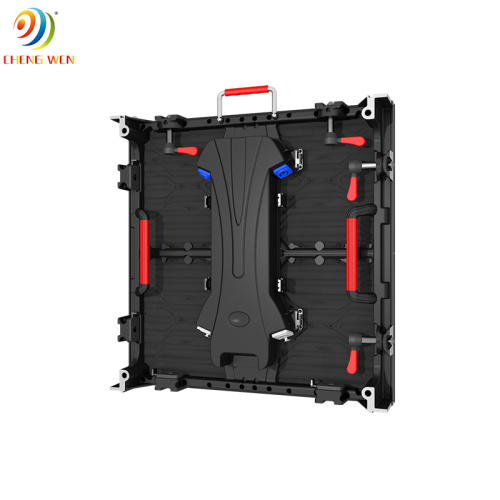

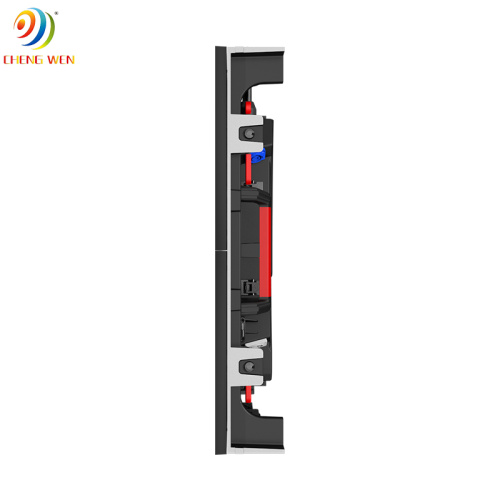

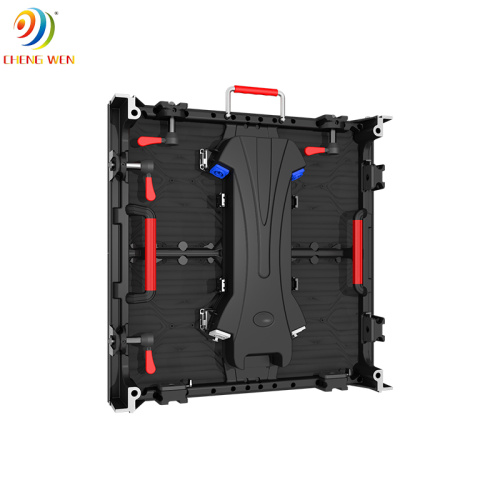

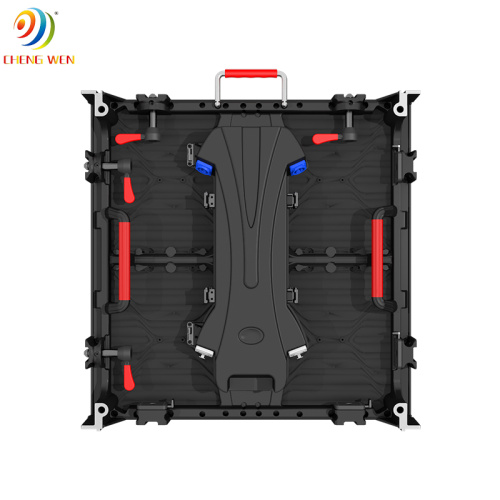

The P2.6 indoor rental Led Display is also designed to be easy to install and dismantle. It features a modular design that allows for quick and easy assembly, and it can be easily transported from one location to another. This makes it ideal for use in events and exhibitions where time and space are limited.
Overall, the Led Video Wall P2.6 indoor rental LED display is an excellent choice for anyone looking for a high-quality display that is easy to use and transport. Its high resolution, brightness, and refresh rate make it suitable for a wide range of indoor applications, and its modular design makes it easy to customize to fit any venue.
Application

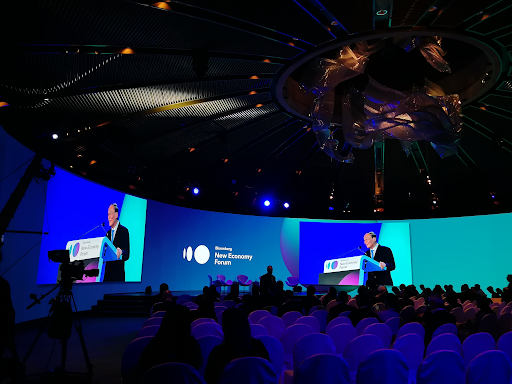

The P2.6 indoor rental LED Screen is also known for its high brightness and contrast ratio, making it suitable for use in environments with varying lighting conditions. It also has a wide viewing angle, ensuring that the content is visible from different angles and distances.
Packing Solution
Flight case packing for LED screens is a popular method of transporting and protecting these delicate pieces of equipment. LED screens are used in a variety of settings, from concerts and festivals to corporate events and trade shows. They are large, heavy, and expensive, which makes them vulnerable to damage during transportation. Flight case packing is a reliable way to ensure that your LED screen arrives at its destination in perfect condition.
Data Sheet
MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH 2.604)
| |
| （Technical parameters） | UNIT | （ parameters values ） |
| （Pixel pitch） | MM | 2.6 |
| （Panel size） | MM | L250*H250*T16.8 |
| （Physical density） | /M2 | 147456 |
| （Pixel configuration） | R/G/B | 1,1,1 |
| （Driving method） | | 1/32 Constant current 1/32scan |
| （LED Encapsulation） | SMD | 1515 |
| （Display resolution） | DOTS | 96X96=9216 |
| （Module weight） | KG | 0.2 |
| （Module port） | | HUB75 |
| （Module working voltage） | VDC | 5 |
| （Module consumption ） | W | 22 |
| Panel Parameters |
| （Viewing angle） | Deg. | 140 |
| （Option distance） | M | 3-30 |
| （Driving device） | | IC:1065s |
| （Every square metre module） | PCS | 16 |
| （Maximum power） | W/ M2 | 350 |
| （Frame Frequency） | HZ/S | ≥60 |
| （Refresh frequency） | HZ/S | 7680Hz |
| （Equilibrium brightness） | CD/ M2 | 900-1200mcd |
| （Working environment temperature） | 0C | -10~60 |
| （Working environment humidity） | RH | 10%～70% |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% |
| （Colour temperature） | | 8500K-11500K |
| （Gray scale/color） | | ≥16.7M color |
| （Input signal） | | RF\ S-Video\ RGB etc |
| （Control system） | | NOvaStar Linsn Coloright |
| （Mean free error time） | HOURS | ＞5000 |
| （Life） | HOURS | 100000 |
| （Lamp failure frequency） | | ＜0.0001 |
| （Antijam） | | IEC801 |
| （Safety） | | GB4793 |
| （Resist the electricity） | | 1500V last 1min No breakdown |
| （IP rating） | | The back IP40，The front IP50 |
| （Steel box size） | mm | L500Xh500/500x1000 |
