Product Introduction
The "New Die-cast Aluminum Cabinet P2.6 Indoor Full-color LED Screen" is an advanced display solution designed for indoor applications, particularly where high resolution and sleek design are required. Let's break down the key components and features of this product:
### Key Features:
1. **Model: P2.6**
- This indicates the pixel pitch, which is 2.6 mm. A smaller pixel pitch generally means higher resolution and better image quality.

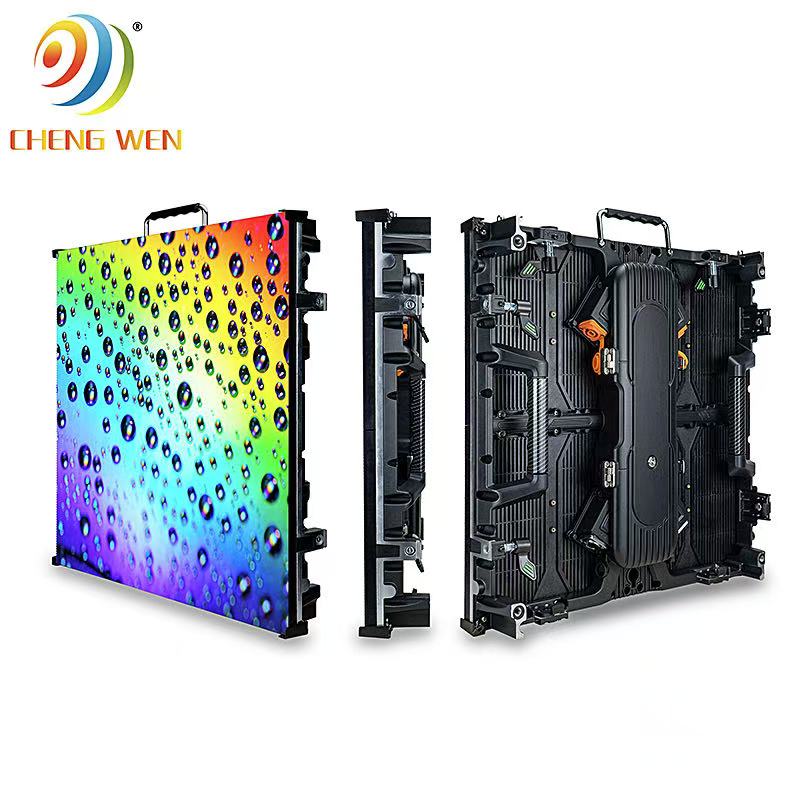

2. **Die-cast Aluminum Cabinet**
- The cabinet is made using die-casting technology with aluminum. This construction method ensures a robust, lightweight, and durable structure.
- Die-casting provides precise dimensions and excellent heat dissipation properties, which is crucial for LED displays that can generate significant heat during operation.
3. **Indoor Use**
- Designed specifically for indoor environments, making it suitable for various settings such as retail stores, corporate lobbies, control rooms, and more.
4. **Full-color LED Screen**
- Capable of displaying full color images and videos with high brightness and contrast.
- Typically uses RGB (Red, Green, Blue) LEDs to create a wide gamut of colors.
### Advantages:
- **High Resolution**: With a pixel pitch of 2.6 mm, this screen offers very high resolution, making it ideal for close viewing distances.
- **Lightweight and Durable**: The use of die-cast aluminum makes the cabinet both lightweight and strong.
- **Heat Dissipation**: Efficient heat management ensures long-term reliability and performance.
- **Aesthetic Design**: Sleek and modern appearance that can enhance the visual appeal of any indoor space.
- **Versatile Applications**: Suitable for a wide range of indoor applications, from advertising and wayfinding to informational displays.
### Potential Applications:
- Retail Stores
- Corporate Lobbies
- Control Rooms
- Conference Rooms
- Museums
- Shopping Malls
### Considerations:
- Ensure proper installation and maintenance to maximize the lifespan and performance of the screen.
- Consider the power consumption and cooling requirements, especially in confined spaces.
- Verify compatibility with existing AV systems or software if integrating into an existing setup.

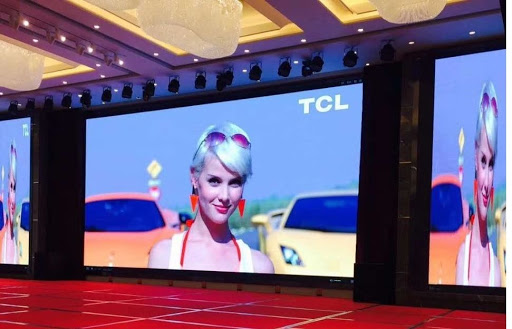

This type of LED screen is typically used in scenarios where high-resolution visuals and a professional appearance are essential, and where the environment allows for the specific mounting and electrical requirements of LED displays.
Packing Solution
Flight case packing for LED screens is a popular method of transporting and protecting these delicate pieces of equipment. LED screens are used in a variety of settings, from concerts and festivals to corporate events and trade shows. They are large, heavy, and expensive, which makes them vulnerable to damage during transportation. Flight case packing is a reliable way to ensure that your LED screen arrives at its destination in perfect condition.
Data Sheet
MAIN TECHNICAL PARAMETERS FOR INDOOR Led Display(PITCH 2.604)
| |
| （Technical parameters） | UNIT | （ parameters values ） |
| （Pixel pitch） | MM | 2.6 |
| （Panel size） | MM | L250*H250*T16.8 |
| （Physical density） | /M2 | 147456 |
| （Pixel configuration） | R/G/B | 1,1,1 |
| （Driving method） | | 1/32 Constant current 1/32scan |
| （LED Encapsulation） | SMD | 1515 |
| （Display resolution） | DOTS | 96X96=9216 |
| （Module weight） | KG | 0.2 |
| （Module port） | | HUB75 |
| （Module working voltage） | VDC | 5 |
| （Module consumption ） | W | 22 |
| Panel Parameters |
| （Viewing angle） | Deg. | 140 |
| （Option distance） | M | 3-30 |
| （Driving device） | | IC:1065s |
| （Every square metre module） | PCS | 16 |
| （Maximum power） | W/ M2 | 350 |
| （Frame Frequency） | HZ/S | ≥60 |
| （Refresh frequency） | HZ/S | 7680Hz |
| （Equilibrium brightness） | CD/ M2 | 900-1200mcd |
| （Working environment temperature） | 0C | -10~60 |
| （Working environment humidity） | RH | 10%～70% |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% |
| （Colour temperature） | | 8500K-11500K |
| （Gray scale/color） | | ≥16.7M color |
| （Input signal） | | RF\ S-Video\ RGB etc |
| （Control system） | | NOvaStar Linsn Coloright |
| （Mean free error time） | HOURS | ＞5000 |
| （Life） | HOURS | 100000 |
| （Lamp failure frequency） | | ＜0.0001 |
| （Antijam） | | IEC801 |
| （Safety） | | GB4793 |
| （Resist the electricity） | | 1500V last 1min No breakdown |
| （IP rating） | | The back IP40，The front IP50 |
| （Steel box size） | mm | L500Xh500/500x1000 |
