Product Introduction

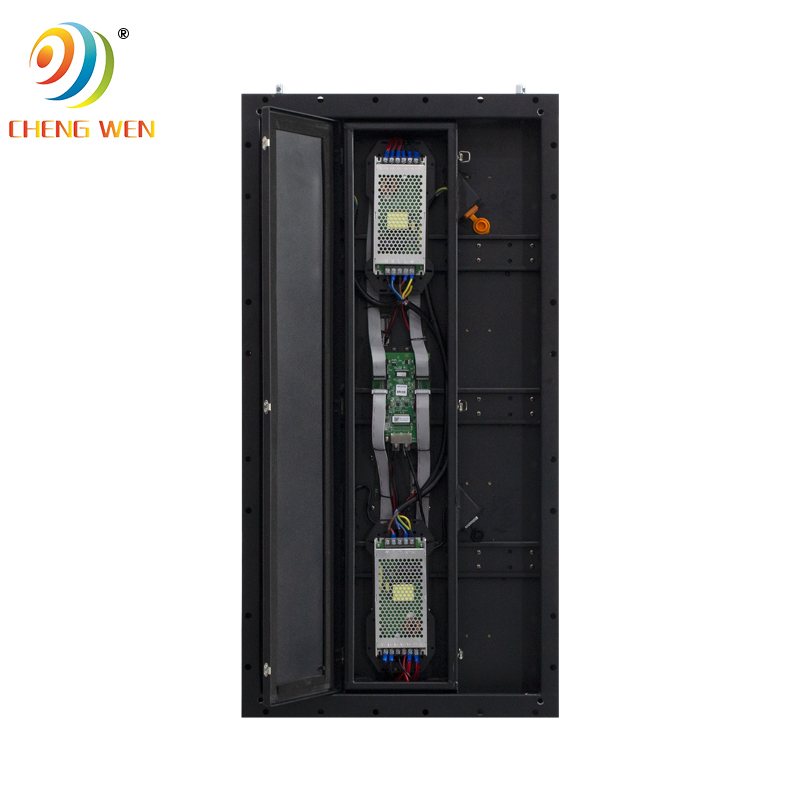

The iron cabinet is durable and sturdy, ensuring that the LED Screen can withstand the wear and tear of regular use. The screen is also designed to be interactive, allowing dancers and performers to interact with the screen and create stunning visual effects.

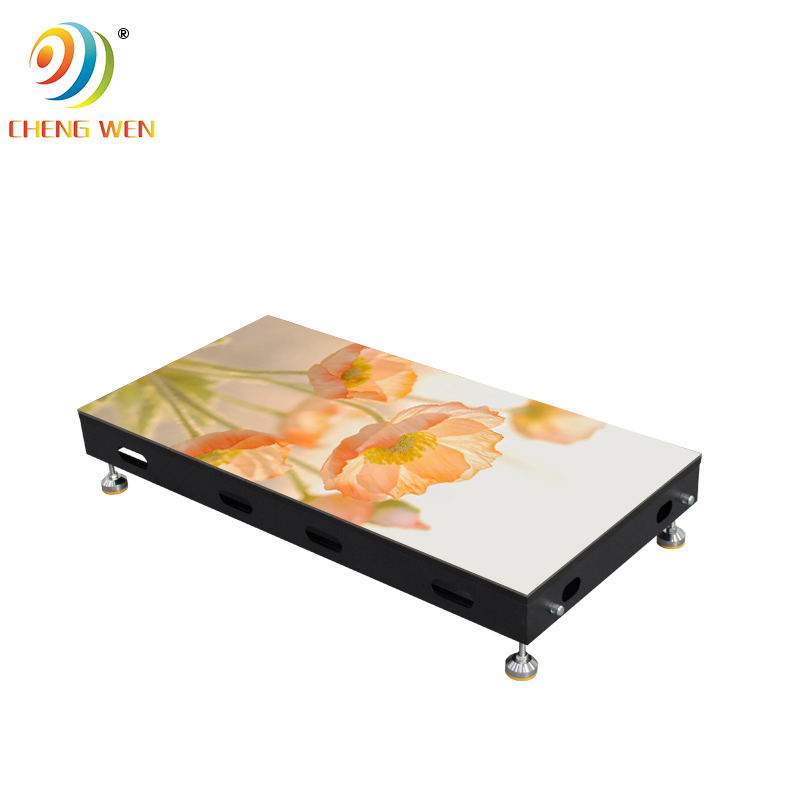

The P2.976 Interactive Dance Floor LED Screen Iron Cabinet is a high-quality LED screen designed specifically for use in dance floors, stages, and other entertainment venues. The screen features a pixel pitch of 2.976mm, providing high-resolution images and videos that are crisp and clear.
P2.976 Interactive Dance Floor LED Screen Iron Cabinet is an excellent choice for anyone looking to add a high-quality LED screen to their dance floor or stage. It offers exceptional performance, durability, and versatility, making it a great investment for any entertainment venue.
Application
The LED screen is easy to install and can be customized to fit any space or venue. It is also energy-efficient, reducing the cost of electricity and minimizing the impact on the environment.
Packing Solution
Packing way: Flight case
Data Sheet
| MAIN TECHNICAL PARAMETERS FOR INDOOR Led Display(PITCH2.976) |
| （Technical parameters） | UNIT | （ parameters values ） |
| （Pixel pitch） | MM | 2.976 |
| （Panel size） | MM | L250*H250*T16.5 |
| （Physical density） | /M2 | 112896 |
| （Pixel configuration） | R/G/B | 1,1,1 |
| （Driving method） | | 1/21 Constant current 1/21scan |
| （LED Encapsulation） | SMD | 1415 |
| （Display resolution） | DOTS | 84X84=7056 |
| （Module weight） | KG | 0.55 |
| （Module port） | | HUB-HD75E |
| （Module working voltage） | VDC | 5 |
| （Module consumption ） | W | 28 |
| Panel Parameters |
| （Viewing angle） | Deg. | 140 |
| （Option distance） | M | 3-40 |
| （Driving device） | | IC:2038S/2153 |
| （Every square metre module） | PCS | 16 |
| （Maximum power） | W/ M2 | 450 |
| （Frame Frequency） | HZ/S | ≥60 |
| （Refresh frequency） | HZ/S | ≥1920/3840 |
| （Equilibrium brightness） | CD/ M2 | ≥5500-6500mcd |
| （Working environment temperature） | 0C | -20~60 |
| （Working environment humidity） | RH | 10%～70% |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% |
| （Colour temperature） | | 6500K-11500K |
| （Gray scale/color） | | ≥16.7M color |
| （Input signal） | | RF\ S-Video\ RGB etc |
| （Control system） | | NovaStar Linsn Coloright |
| （Mean free error time） | HOURS | ＞5000 |
| （Life） | HOURS | 100000 |
| （Lamp failure frequency） | | ＜0.0001 |
| （Antijam） | | IEC801 |
| （Safety） | | GB4793 |
| （Resist the electricity） | | 1500V last 1min No breakdown |
| （IP rating） | | IP65 |
| （Steel box size） | mm | L500Xh500/500x1000 |
