Product Introdution

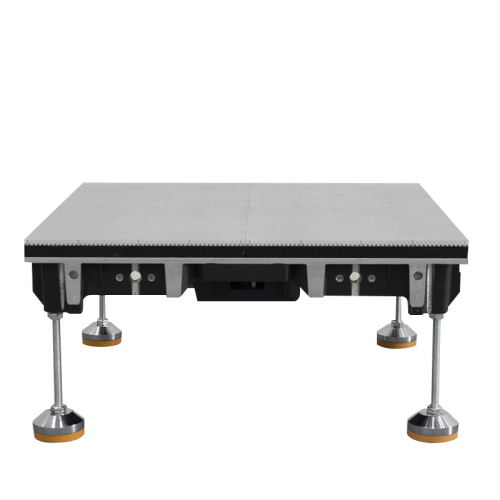

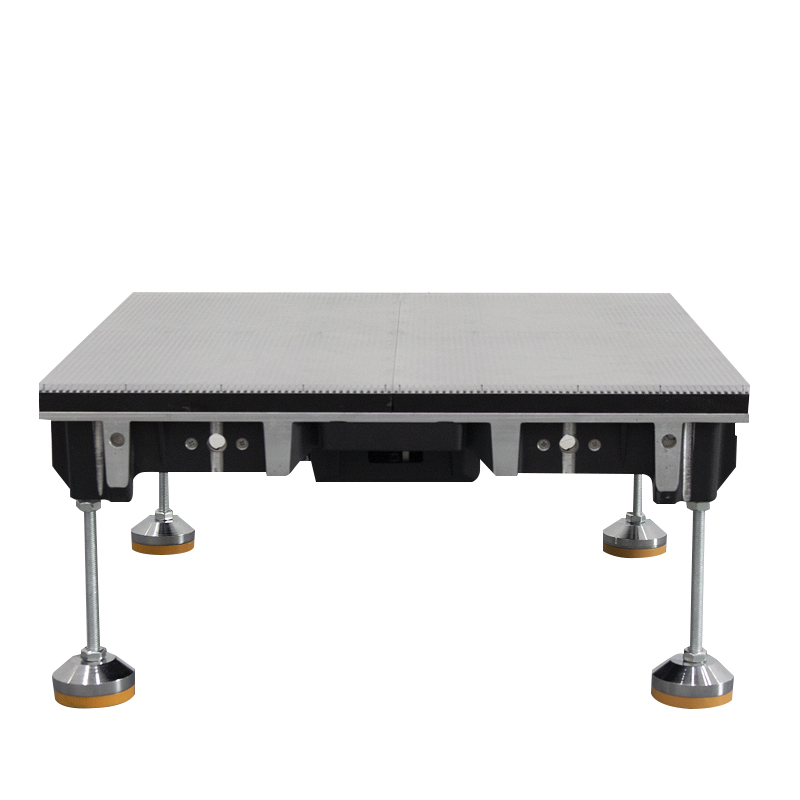

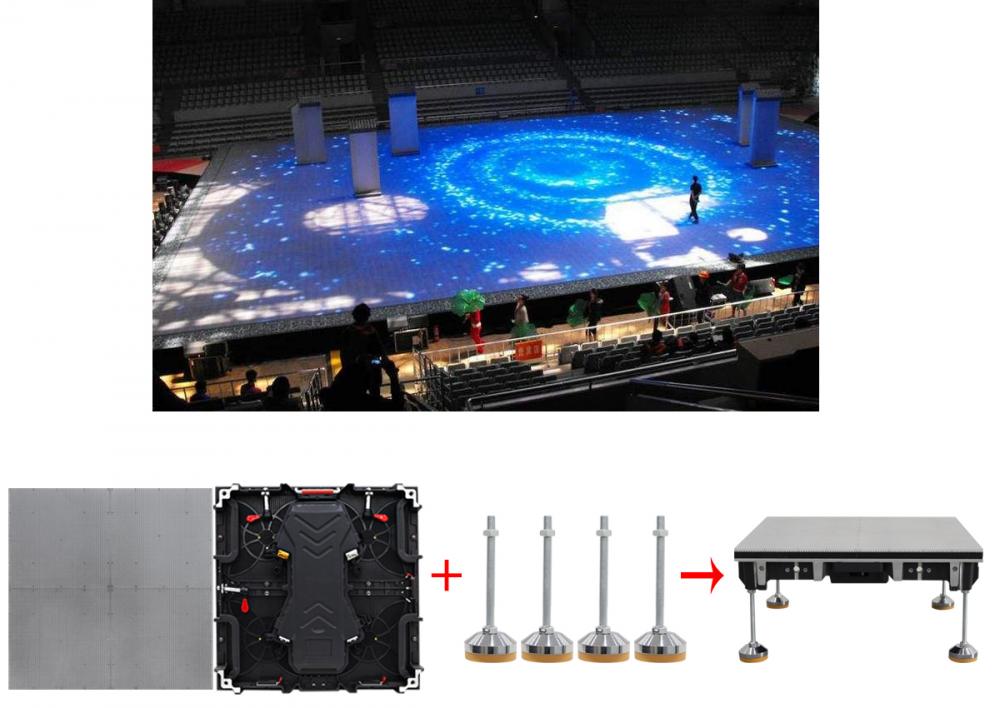

As a very good sale product, the P3.91 Professional Interactive Dance Floor LED Screen is a high-quality Led Display designed specifically for use in dance floors and other interactive environments. It features a pixel pitch of 3.91mm, which provides excellent image clarity and detail, even at close viewing distances.

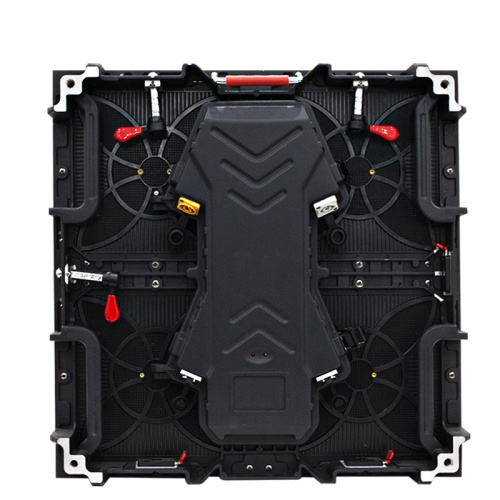

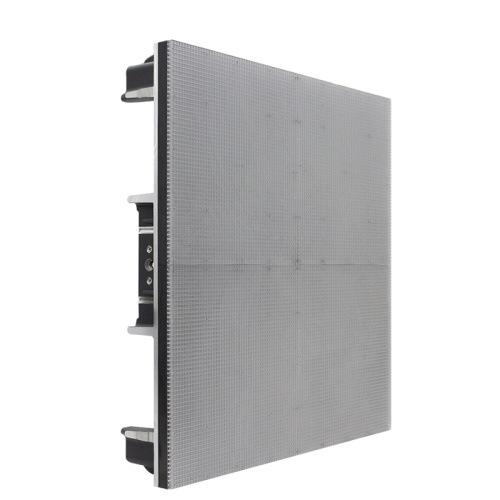

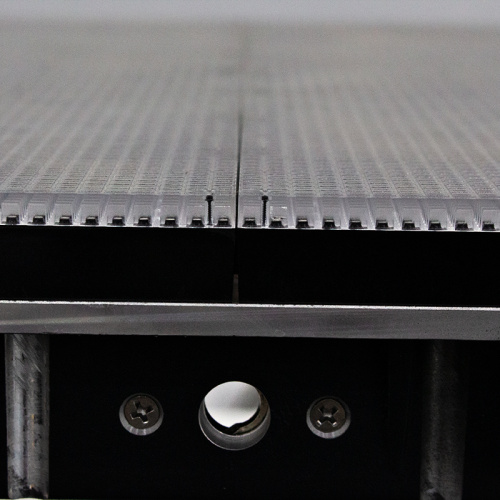

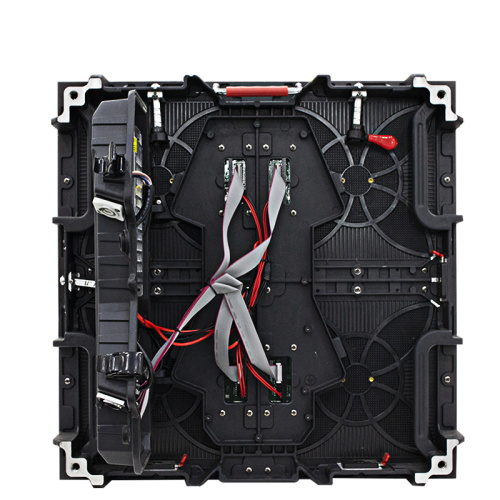

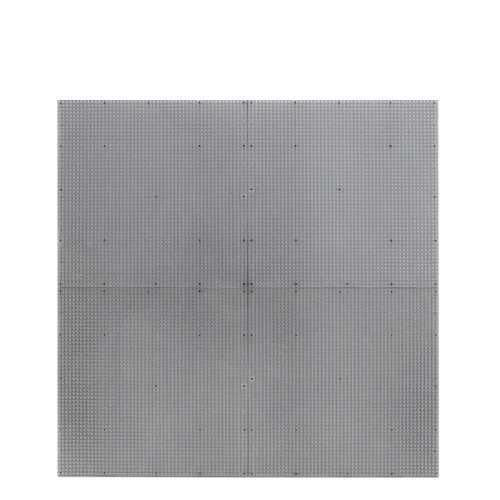

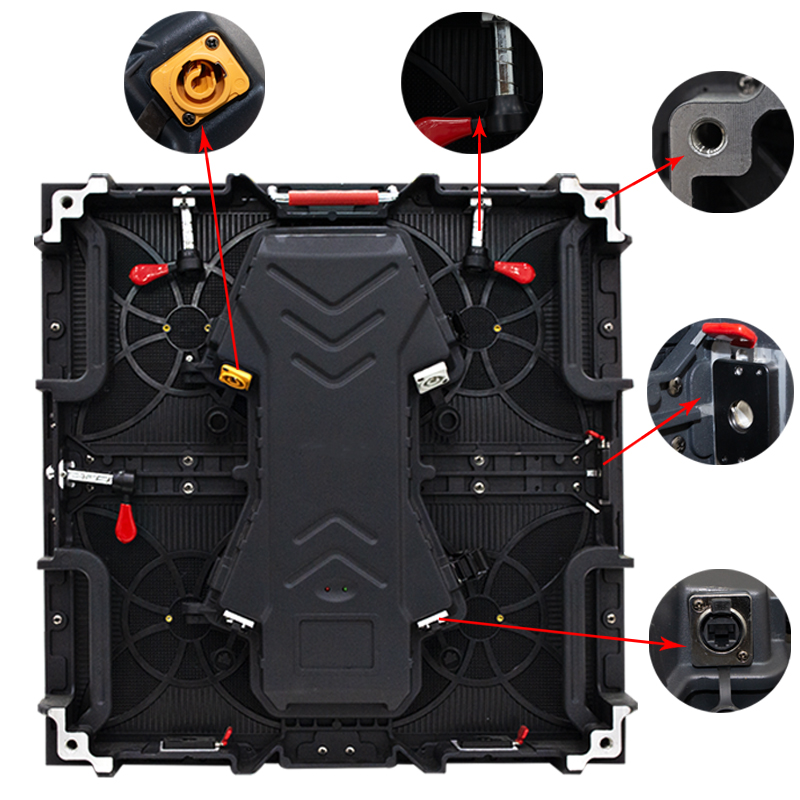

The LED Screen is made up of small, modular panels that can be easily connected together to create a larger display. This modular design makes it easy to customize the size and shape of the screen to fit your specific needs.
One of the key features of the P3.91 Professional Interactive Dance Floor LED Screen is its interactivity. The screen is sensitive to pressure and can detect when people are walking or dancing on it. This allows for a wide range of interactive applications, such as games, dance competitions, and interactive art installations.
Application
The LED screen is also designed for durability and reliability. It is made from high-quality materials and features a rugged design that can withstand the wear and tear of regular use. Additionally, the screen is designed to be energy-efficient, which helps to reduce operating costs over time.
Overall, the P3.91 Professional Interactive Dance Floor LED Screen is an excellent choice for anyone looking for a high-quality LED display for use in interactive environments. Its interactivity, durability, and reliability make it a great investment for businesses, event organizers, and artists alike.
Packing Solution
Packing way: Flight case
Data Sheet
| MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH3.91) |
| （Technical parameters） | UNIT | （ parameters values ） |
| （Pixel pitch） | MM | 3.91 |
| （Panel size） | MM | L250*H250*T16.5 |
| （Physical density） | /M2 | 65536 |
| （Pixel configuration） | R/G/B | 1,1,1 |
| （Driving method） | | 1/16 Constant current 1/16scan |
| （LED Encapsulation） | SMD | 1921 |
| （Display resolution） | DOTS | 64X64=4096 |
| （Module weight） | KG | 0.55 |
| （Module port） | | HUB-HD75 |
| （Module working voltage） | VDC | 5 |
| （Module consumption ） | W | 30 |
| Panel Parameters |
| （Viewing angle） | Deg. | 140 |
| （Option distance） | M | 3-40 |
| （Driving device） | | IC:2038S/2153 |
| （Every square metre module） | PCS | 16 |
| （Maximum power） | W/ M2 | 480 |
| （Frame Frequency） | HZ/S | ≥60 |
| （Refresh frequency） | HZ/S | ≥1920/3840HZ |
| （Equilibrium brightness） | CD/ M2 | ≥5500-6500mcd |
| （Working environment temperature） | 0C | -10~60 |
| （Working environment humidity） | RH | 10%～70% |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% |
| （Colour temperature） | | 8500K-11500K |
| （Gray scale/color） | | ≥16.7M color |
| （Input signal） | | RF\ S-Video\ RGB etc |
| （Control system） | | NovaStar Linsn Coloright |
| （Mean free error time） | HOURS | ＞5000 |
| （Life） | HOURS | 100000 |
| （Lamp failure frequency） | | ＜0.0001 |
| （Antijam） | | IEC801 |
| （Safety） | | GB4793 |
| （Resist the electricity） | | 1500V last 1min No breakdown |
| （IP rating） | | IP65 |
| （Steel box size） | mm | L500Xh500/500x1000 |
