Production Introduction

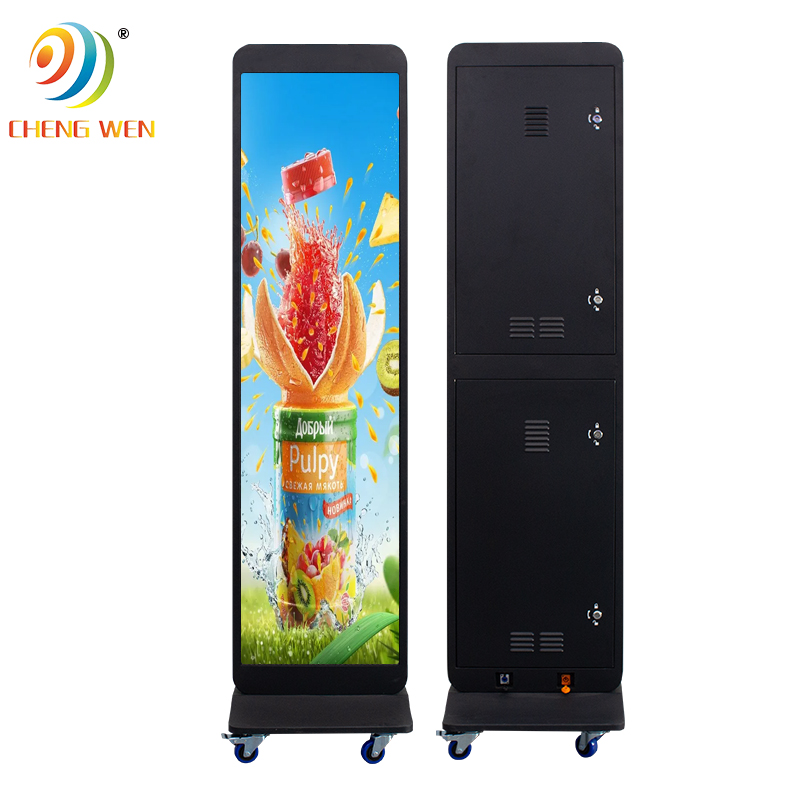

The P2.5 Outdoor Waterproof Advertising LED Poster Screen Led Display is a high-quality LED display designed for outdoor advertising. With a pixel pitch of 2.5mm, the screen offers a high resolution and clear image quality, making it ideal for displaying text, images, and videos.Outdoor Fixed Advertising Video Wall,Outdoor Fixed Led Billboards Waterproof Product.
The screen is also waterproof, making it suitable for use in all weather conditions. It is built with a durable aluminum frame and features a protective glass cover to ensure the screen is protected from damage.
Application
The P2.5 Outdoor Waterproof Advertising LED Poster Screen is easy to install and operate, with a user-friendly interface that allows you to control the display remotely. It also comes with a range of connectivity options, including HDMI, VGA, and USB, making it easy to connect to a variety of devices.
Overall, the P2.5 Outdoor Waterproof Advertising LED Poster Screen is a reliable and high-quality LED display that is perfect for outdoor advertising and promotional activities.
Packing Solution
Packing way: Flight Case
| Main technical parameters of outdoor LED display (pitch2.5) |
| （Technical parameters） | UNIT | （ parameters values ） |
| （Pixel pitch） | MM | 2.5 |
| （Panel size） | MM | L320*H160*T15 |
| （Physical density） | /M2 | 160000 |
| （Pixel configuration） | R/G/B | 1,1,1 |
| （Driving method） | | 1/16 Constant current 1/16scan |
| （LED Encapsulation） | SMD | 1415 |
| （Display resolution） | DOTS | 128X64=4096 |
| （Module weight） | KG | 0.42 |
| （Module port） | | HUB-HD75E |
| （Module working voltage） | VDC | 5 |
| （Module consumption ） | W | 27 |
| ※屏体参数 |
| （Viewing angle） | Deg. | 140 |
| （Option distance） | M | 2-30 |
| （Driving device） | | IC:2037/2153 |
| （Every square metre module） | PCS | 19.53 |
| （Maximum power） | W/ M2 | 525 |
| （Frame Frequency） | HZ/S | ≥60 |
| （Refresh frequency） | HZ/S | ≥1920/3840 |
| （Equilibrium brightness） | CD/ M2 | ≥5500-6500mcd |
| （Working environment temperature） | 0C | -20~60 |
| （Working environment humidity） | RH | 10%～70% |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% |
| （Colour temperature） | | 6500K-10000K |
| （Gray scale/color） | | ≥16.7M color |
| （Input signal） | | RF\ S-Video\ RGB etc |
| （Control system） | | NovaStar Linsn Coloright |
| （Mean free error time） | HOURS | ＞5000 |
| （Life） | HOURS | 100000 |
| （Lamp failure frequency） | | ＜0.0001 |
| （Antijam） | | IEC801 |
| （Safety） | | GB4793 |
| （Resist the electricity） | | 1500V last 1min No breakdown |
| （IP rating） | | The back IP40，The front IP65 |
| （Steel box size） | mm | L640Xh640/960x960 |
