Product Introduction
The P3.91-7.82 Transparent LED Screen is an innovative and modern solution for shops and retail stores. This type of screen allows for a transparent display that can be used to showcase products, advertisements, or other promotional content while still allowing customers to see through the screen and view the products behind it.
With a pixel pitch of 3.91-7.82mm, this transparent
LED Screen provides high-quality images and clear text that is easy to read. It also has a high refresh rate, which ensures that the content is displayed smoothly and without any lag or flickering.

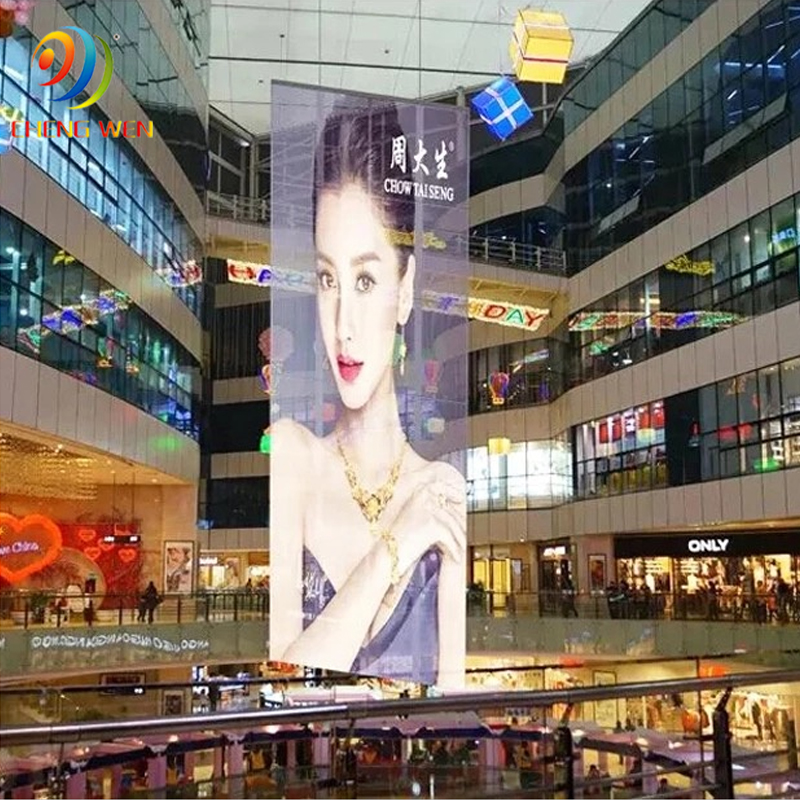

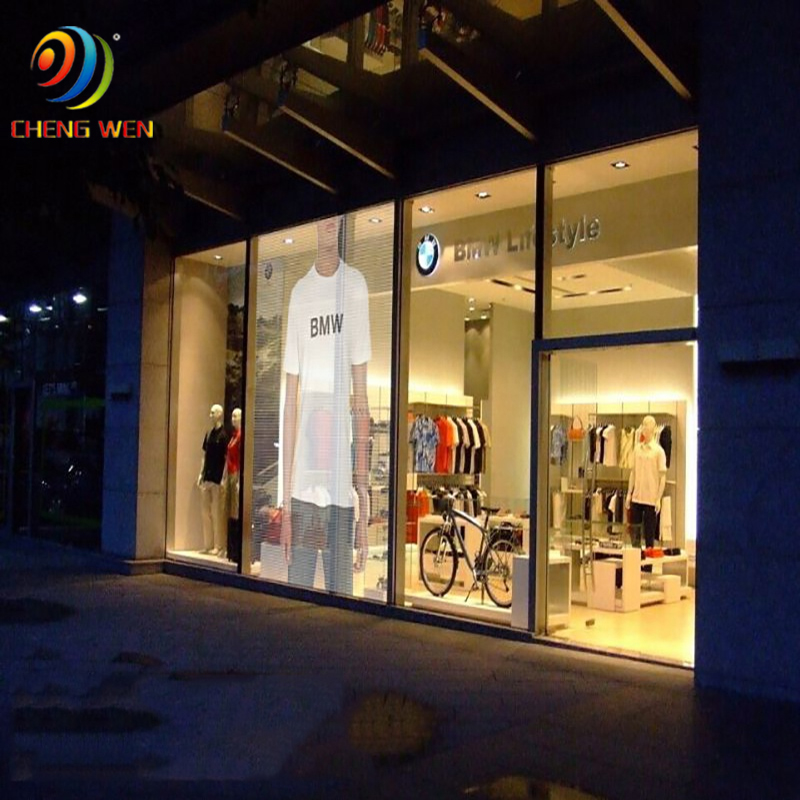

One of the main benefits of the P3.91-7.82 transparent LED screen is its versatility. It can be used in a variety of settings, including retail stores, shopping malls, museums, and exhibitions. It can be mounted on walls or used as a freestanding display, making it a flexible option for any space.
Another key advantage of this type of screen is its energy efficiency. LED technology is known for its low power consumption, which means that the P3.91-7.82 transparent LED screen is an eco-friendly option that can help businesses reduce their energy costs.
Application
Overall, the P3.91-7.82 transparent LED screen is a cutting-edge solution for shops and retail stores that want to create an engaging and visually appealing shopping experience for their customers. With its high-quality display, versatility, and energy efficiency, it is an investment that can pay off in the long run by attracting more customers and boosting sales.
Packing Solution
Packing way: flight case
Data Sheet
| MAIN TECHNICAL PARAMETERS FOR INDOOR Led Display(PITCH3.91) |
| （Technical parameters） | UNIT | （ parameters values ） |
| （Pixel pitch） | MM | 3.91 |
| （Panel size） | MM | L250*H250*T16.5 |
| （Physical density） | /M2 | 32768 |
| （Pixel configuration） | R/G/B | 1,1,1 |
| （Driving method） | | 1/16 Constant current 1/16scan |
| （LED Encapsulation） | SMD | 1921 |
| （Display resolution） | DOTS | 64X64=4096 |
| （Module weight） | KG | 0.55 |
| （Module port） | | HUB-HD75 |
| （Module working voltage） | VDC | 5 |
| （Module consumption ） | W | 30 |
| Panel Parameters |
| （Viewing angle） | Deg. | 140 |
| （Option distance） | M | 3-40 |
| （Driving device） | | IC:2038S/2153 |
| （Every square metre module） | PCS | 16 |
| （Maximum power） | W/ M2 | 480 |
| （Frame Frequency） | HZ/S | ≥60 |
| （Refresh frequency） | HZ/S | ≥1920/3840HZ |
| （Equilibrium brightness） | CD/ M2 | ≥3000-3500mcd |
| （Working environment temperature） | 0C | -10~60 |
| （Working environment humidity） | RH | 10%～70% |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% |
| （Colour temperature） | | 8500K-11500K |
| （Gray scale/color） | | ≥16.7M color |
| （Input signal） | | RF\ S-Video\ RGB etc |
| （Control system） | | NovaStar Linsn Coloright |
| （Mean free error time） | HOURS | ＞5000 |
| （Life） | HOURS | 100000 |
| （Lamp failure frequency） | | ＜0.0001 |
| （Antijam） | | IEC801 |
| （Safety） | | GB4793 |
| （Resist the electricity） | | 1500V last 1min No breakdown |
| （IP rating） | | IP65 |
| （Steel box size） | mm | L500Xh500/500x1000 |
