Product Introduction

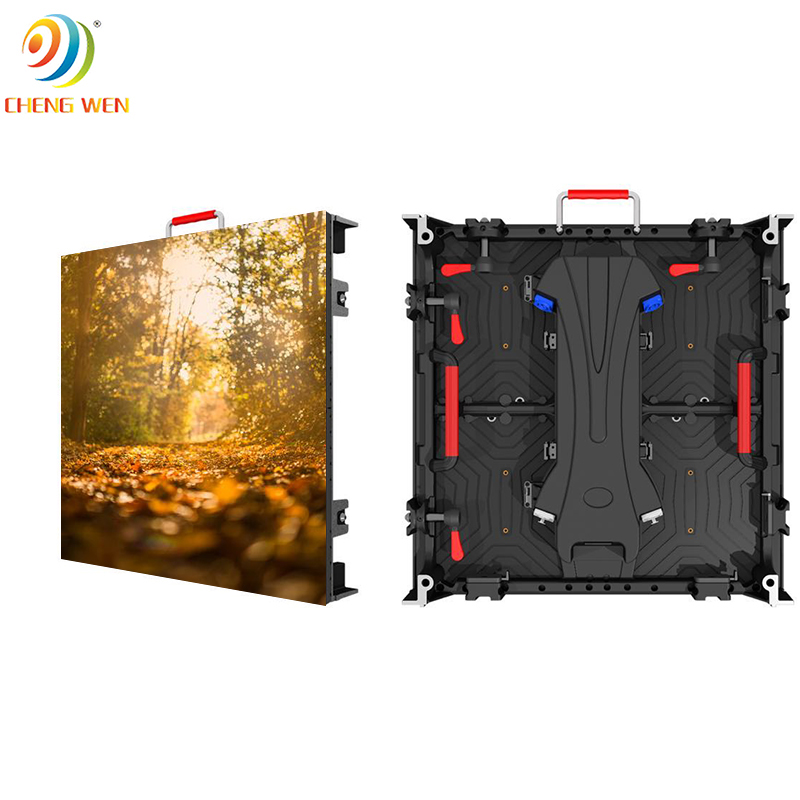

LED Screen P2.6 outdoor rental stage Led Display is a type of LED display that is designed for outdoor use, specifically for rental purposes. It has a pixel pitch of 2.6mm, which means that the distance between each LED is 2.6mm Outdoor Rental Stage Event LED Display. This results in a high-resolution display that is capable of displaying clear and sharp images even from a distance.

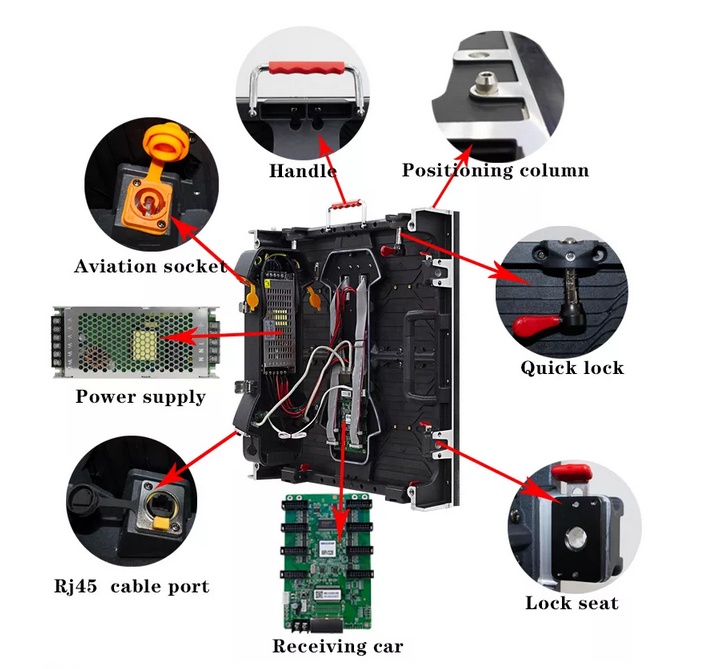

The outdoor rental stage LED display is made up of individual LED modules that can be connected together to form a larger display. This modular design makes it easy to assemble and disassemble for rental purposes. It can be used for a variety of events such as concerts, festivals, trade shows, and outdoor advertising.
Overall, the P2.6 outdoor rental stage LED display is a versatile and durable display that is ideal for outdoor events and advertising. Its high resolution, modular design, and weather-resistant features make it a popular choice for rental companies and event organizers.
Application
The P2.6 outdoor rental stage LED display is also designed to withstand outdoor conditions. It is water-resistant and can withstand extreme temperatures, making it suitable for use in different weather conditions. Additionally, it has a high brightness level, which ensures that the display is visible even in bright sunlight.
Packing Solution
Packing way: Flight case
Data Sheet
| MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH 2.604) |
| （Technical parameters） | UNIT | （ parameters values ） |
| （Pixel pitch） | MM | 2.6 |
| （Panel size） | MM | L250*H250*T15 |
| （Physical density） | /M2 | 160000 |
| （Pixel configuration） | R/G/B | 1,1,1 |
| （Driving method） | | 1/24 Constant current 1/24scan |
| （LED Encapsulation） | SMD | 1415 |
| （Display resolution） | DOTS | 96X96=9216 |
| （Module weight） | KG | 0.58 |
| （Module port） | | HUB-HD75E |
| （Module working voltage） | VDC | 5 |
| （Module consumption ） | W | 29 |
| Panel Parameters |
| （Viewing angle） | Deg. | 140 |
| （Option distance） | M | 2-30 |
| （Driving device） | | IC:1065s |
| （Every square metre module） | PCS | 16 |
| （Maximum power） | W/ M2 | 460 |
| （Frame Frequency） | HZ/S | ≥60 |
| （Refresh frequency） | HZ/S | 7680Hz |
| （Equilibrium brightness） | CD/ M2 | ≥5500-6500mcd |
| （Working environment temperature） | 0C | -20~60 |
| （Working environment humidity） | RH | 10%～70% |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% |
| （Colour temperature） | | 6500K-10000K |
| （Gray scale/color） | | ≥16.7M color |
| （Input signal） | | RF\ S-Video\ RGB etc |
| （Control system） | | NovaStar Linsn Coloright |
| （Mean free error time） | HOURS | ＞5000 |
| （Life） | HOURS | 100000 |
| （Lamp failure frequency） | | ＜0.0001 |
| （Antijam） | | IEC801 |
| （Safety） | | GB4793 |
| （Resist the electricity） | | 1500V last 1min No breakdown |
| （IP rating） | | The back IP40，The front IP65 |
| （Steel box size） | mm | L500Xh500/500x1000 |
